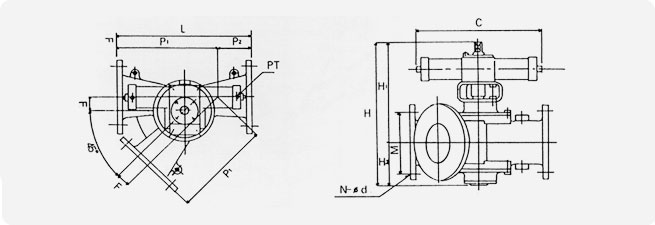

 DIMENSIONS |
[ 단위(mm) ] |
|
| MODEL |
A |
L |
P1 |
P2 |
F |
H |
H1 |
H2 |
C |
PT" |
N-φd |
M |
| YAD-080 |
80 |
325 |
247.0 |
78.0 |
35 |
399 |
108 |
291 |
318 |
PT
1/4 |
8-19 |
150 |
| YAD-100 |
100 |
400 |
296.6 |
103.4 |
40 |
431 |
123 |
308 |
318 |
PT
1/4 |
8-19 |
175 |
| YAD-125 |
125 |
435 |
326.1 |
108.9 |
45 |
478 |
139 |
339 |
398 |
PT
3/8 |
8-23 |
210 |
| YAD-150 |
150 |
480 |
360.7 |
119.3 |
50 |
502 |
151 |
351 |
398 |
PT
3/8 |
8-23 |
240 |
| YAD-200 |
200 |
565 |
439.4 |
125.6 |
65 |
607 |
189 |
418 |
467 |
PT
3/8 |
12-23 |
290 |
| YAD-250 |
250 |
625 |
517.7 |
107.3 |
85 |
661 |
216 |
445 |
467 |
PT
3/8 |
12-25 |
355 |
| YAD-300 |
300 |
735 |
608.9 |
126.1 |
100 |
773 |
251 |
522 |
627 |
PT
1/2 |
16-25 |
400 |
| YAD-350 |
350 |
815 |
673.1 |
141.9 |
110 |
812 |
270 |
542 |
627 |
PT
1/2 |
16-25 |
445 |
| YAD-400 |
400 |
870 |
748.8 |
121.2 |
130 |
872 |
300 |
572 |
627 |
PT
1/2 |
16-25 |
510 |
| YAD-500 |
500 |
970 |
871.3 |
98.7 |
160 |
1038 |
358 |
680 |
760 |
PT
1/2 |
20-27 |
620 |
|
| |
| MATERIAL |
- FC20
- SCS13
- SUS304
- S45C
- SS41 |
|
|
|
